- Constructed with double-layer flat steel profiles
- Ideal for spaces with limited projection
- Delivers a heat output of 4167 BTU

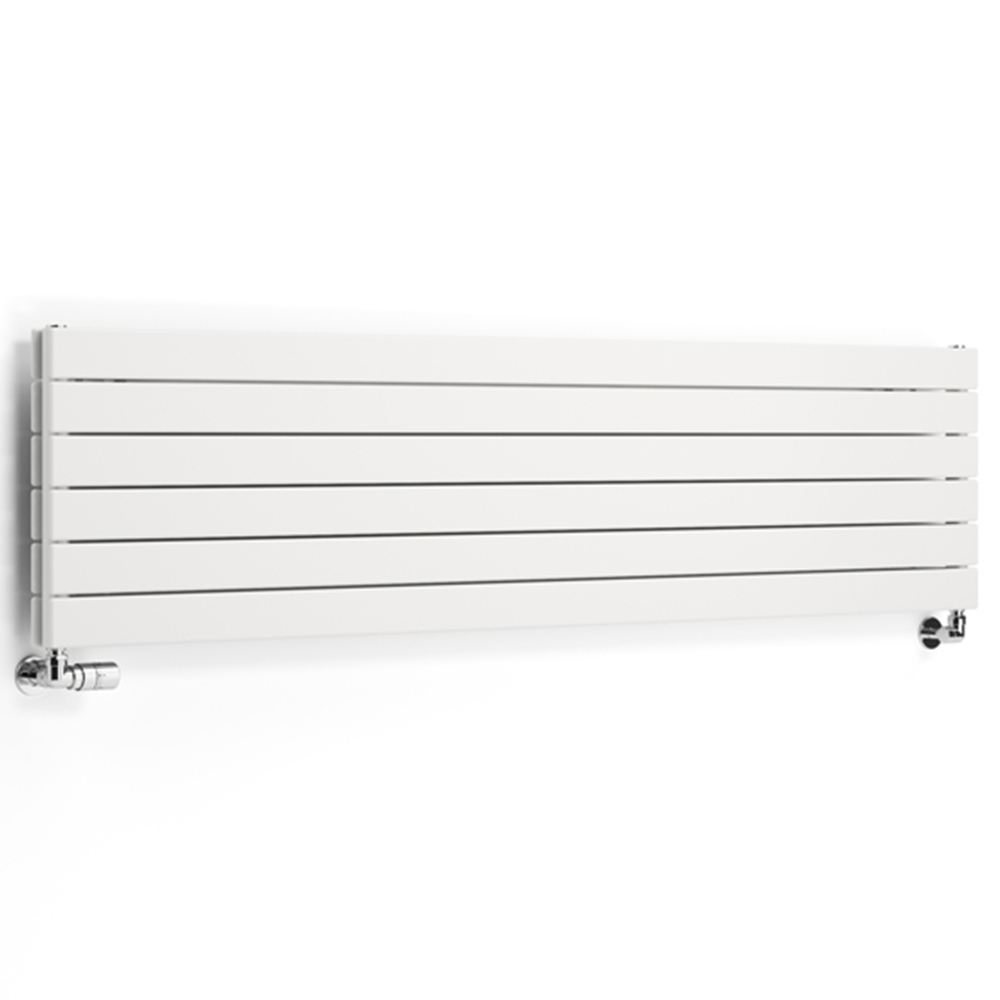

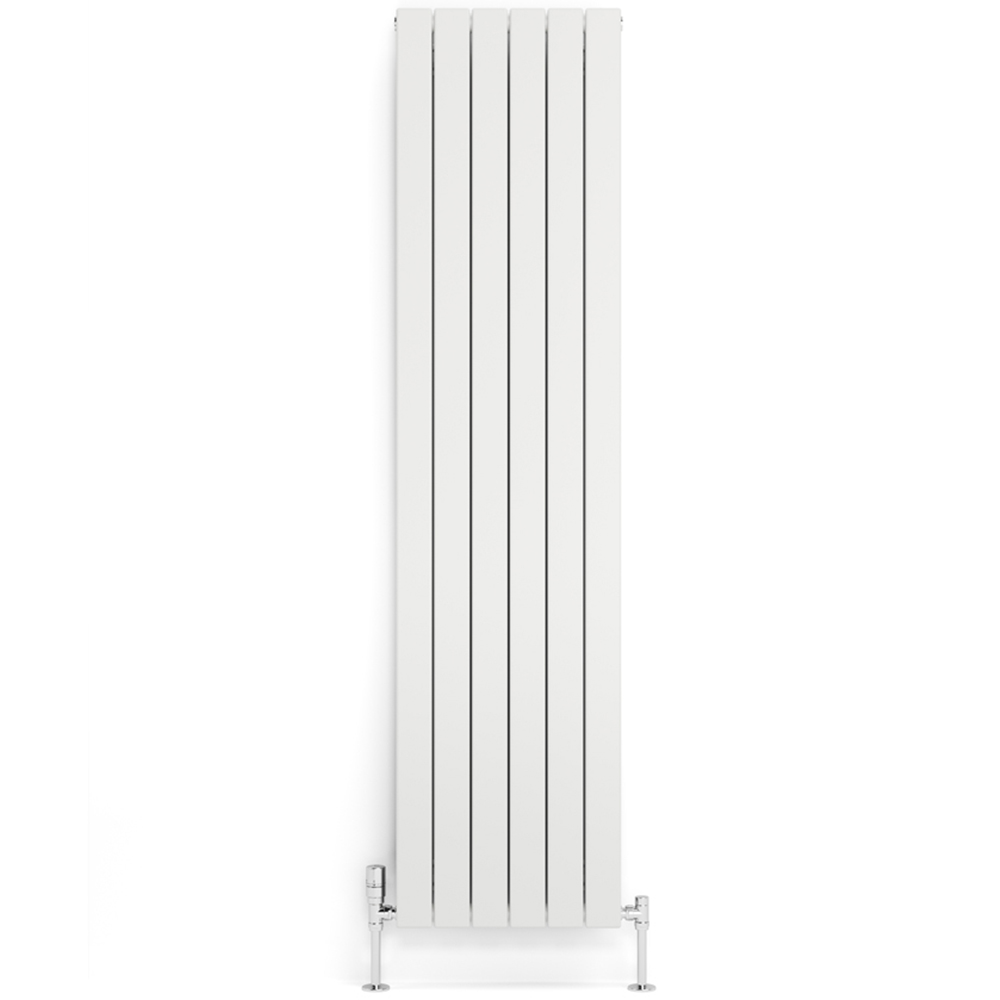

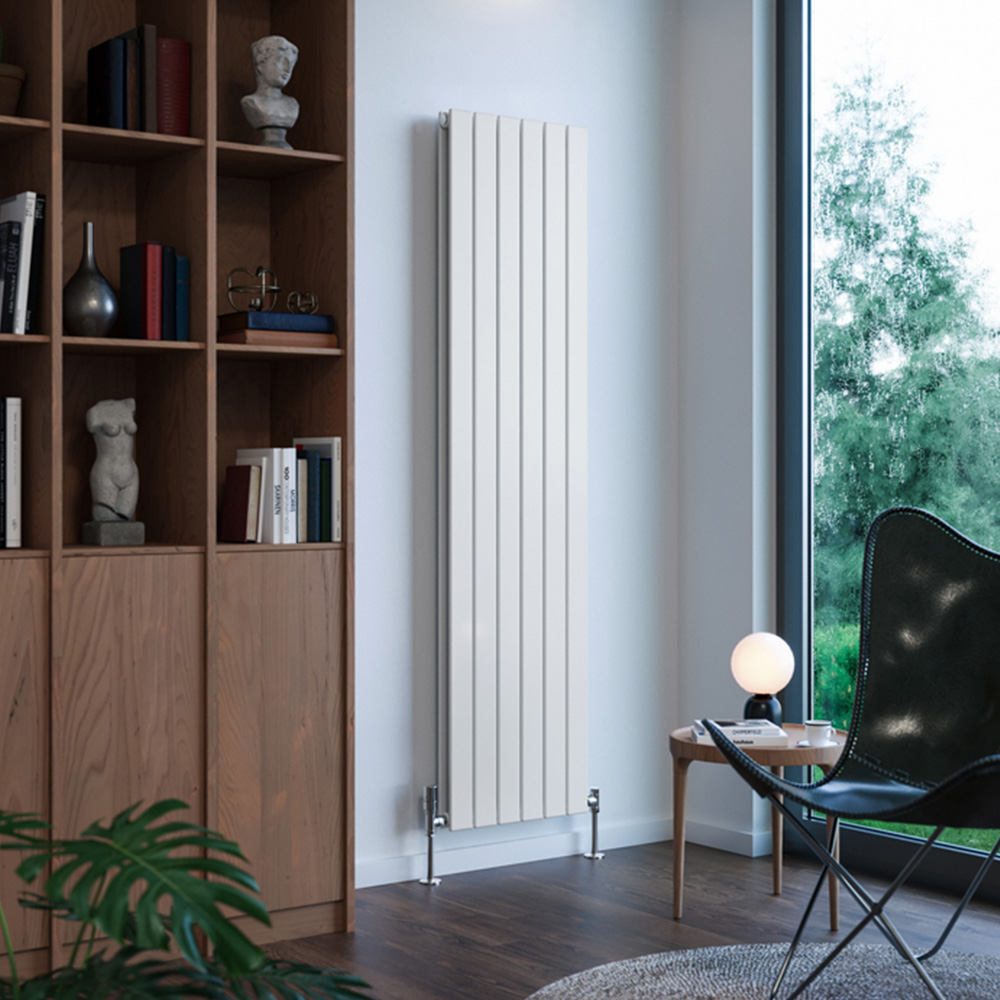

The Forte double panel radiator (V20) presents a sleek aesthetic with its flat bar design, offering a touch of modern elegance to any space. Each 70mm bar is carefully spaced to create a seamless visual effect against your wall. Crafted from a double layer of flat steel profiles mounted on round rear collectors, this radiator boasts a slim projection of just 93mm (including fixings), making it ideal for rooms where space is at a premium. Finished in a smooth, silky white (RAL 9016), this model exudes understated sophistication. For colour accuracy, a 150x50mm colour chip is available should you wish to see the colour prior to purchase.

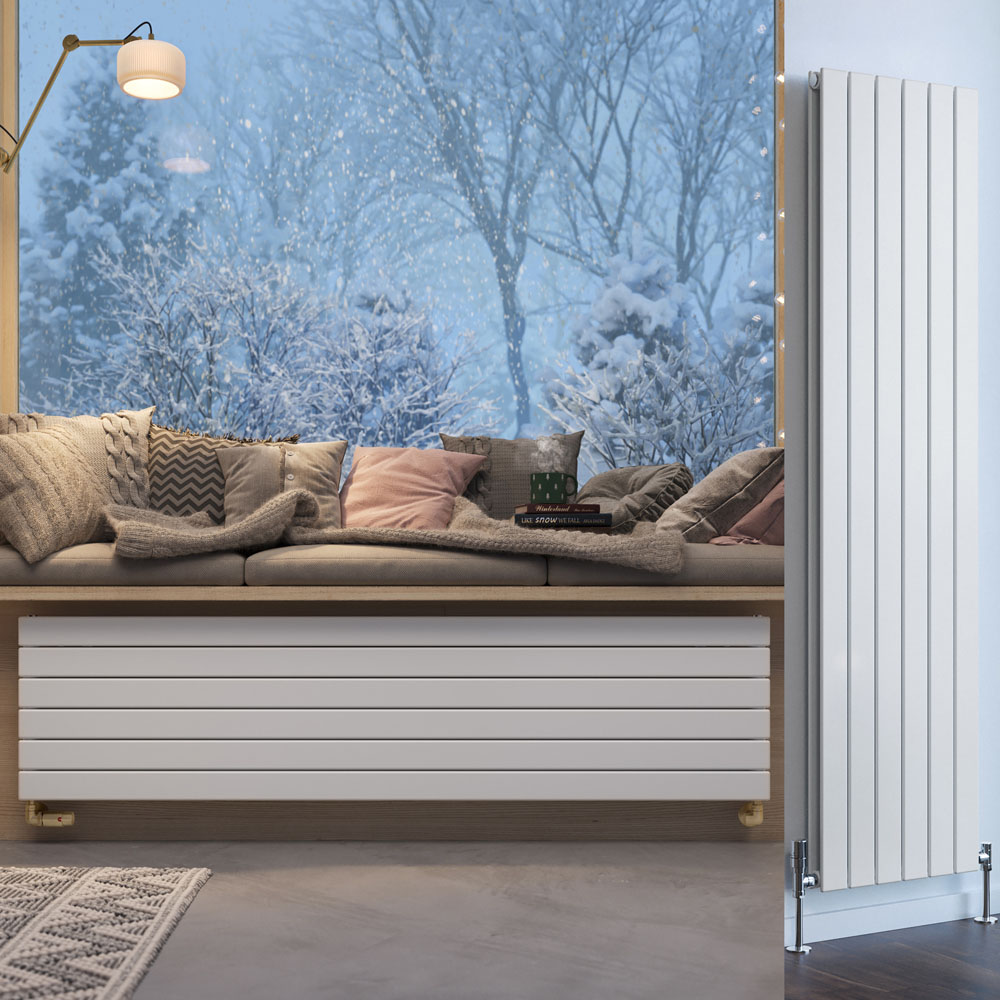

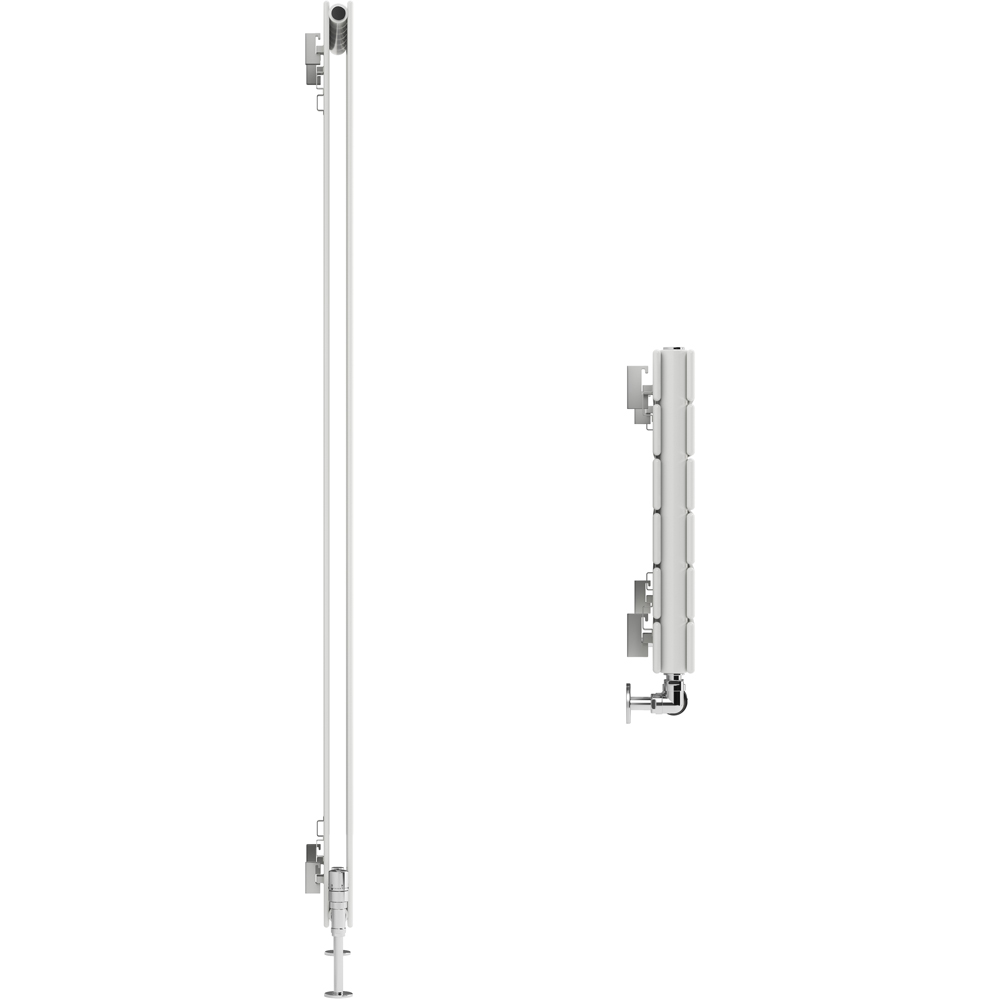

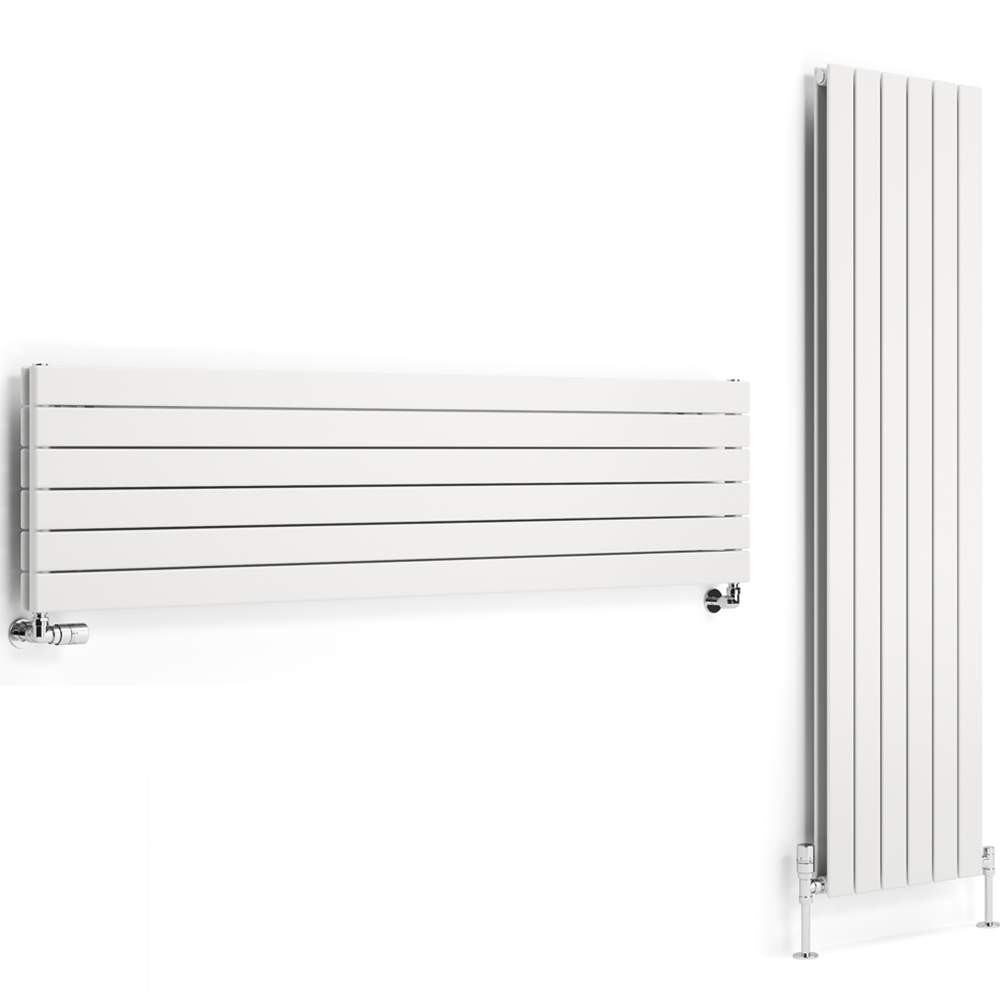

The Forte range offers unparalleled versatility, allowing for both vertical and horizontal installation. Mount it vertically with the bars running up and down (valves connected on the sides) or horizontally with the bars running left to right (valves connected on the undersides). The supplied universal bracket accommodates either orientation, and full instructions are provided. As you rotate the radiator either way up it changes the view you will have of the brackets from the side of the radiator. With the bars running vertically the brackets are on show, but with the bars running horizontally the brackets are fully concealed from view.
To ensure optimal heat distribution, the Forte radiator is pre-fitted with an internal diverter (baffle). This should be left in place for vertical installations but removed for horizontal configurations (instructions included for the plumber). A Forte single panel model (V10) is also available, with a lower projection of 73mm.
-
Brand:
-
Terma
-
Type:
-
Radiators
-
Colour:
-
White
-
Pack Qty:
-
1
-
Size:
-
180 x 44 x 9.3cm
-
Customer Assembly Required:
-
No
-
Height:
-
180.00
-
Material:
-
Low Carbon Mild Steel
-
Width:
-
44.00
-
Depth:
-
9.30
-
Model No:
-
TG20F180044-K916LP
-
Product Code:
-
0768002
