- Constructed with double-layer flat steel profiles
- Ideal for spaces with limited projection
- Delivers a heat output of 2111 BTU
Enhance your living space with the Forte designer radiator, a stylish flat bar design available in single or double panel options. Each bar is 70mm wide and carefully spaced to create a seamless aesthetic against your wall. The Forte double panel (V20) model is manufactured from a double layer of flat steel profiles mounted on round rear collectors, projecting just 93mm from the wall (including fixings), making it ideal for rooms where space is at a premium. (A single panel model (V10) is also available with a 73mm projection).

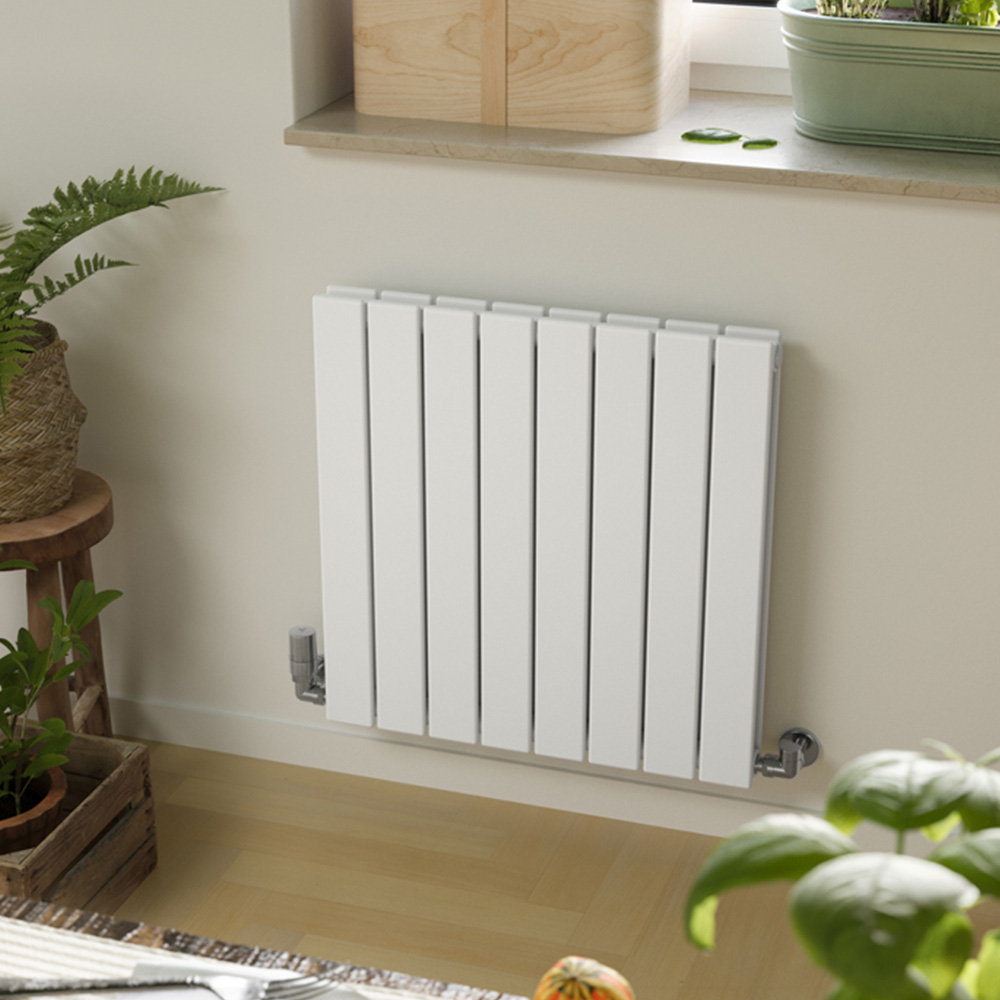

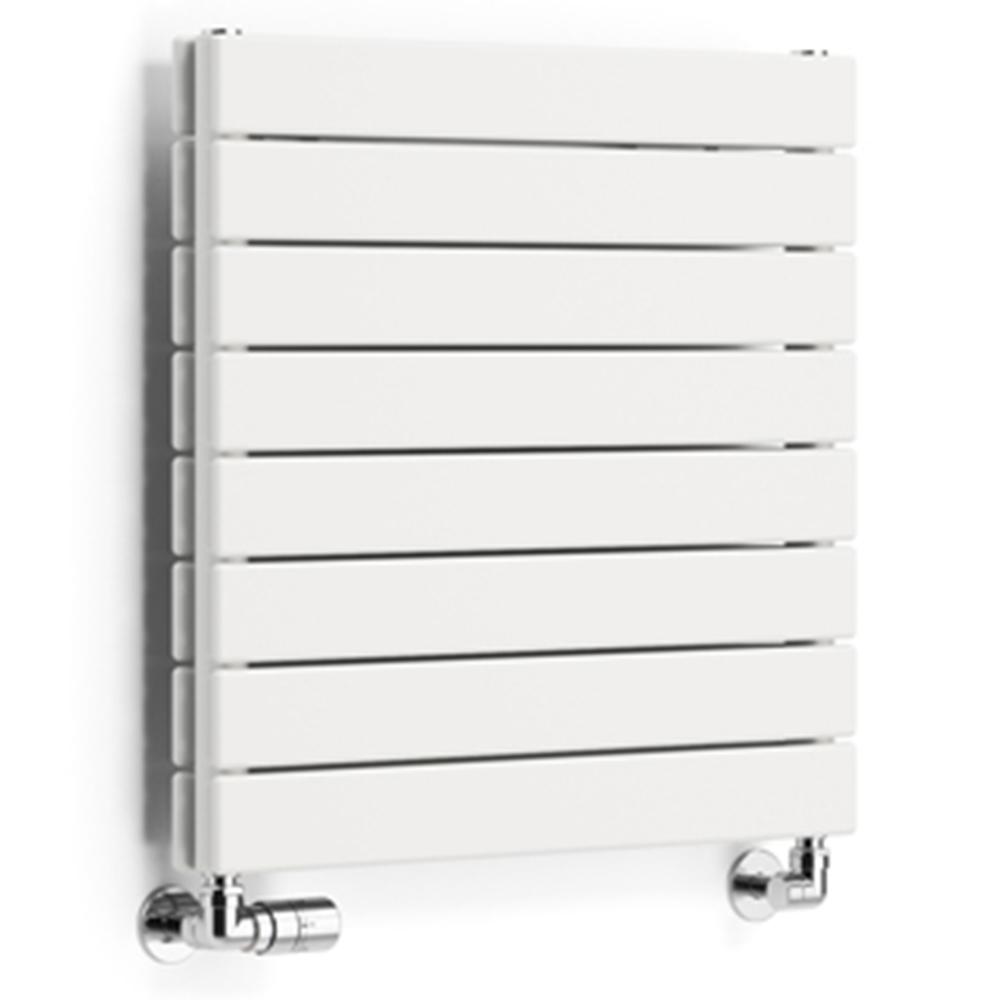

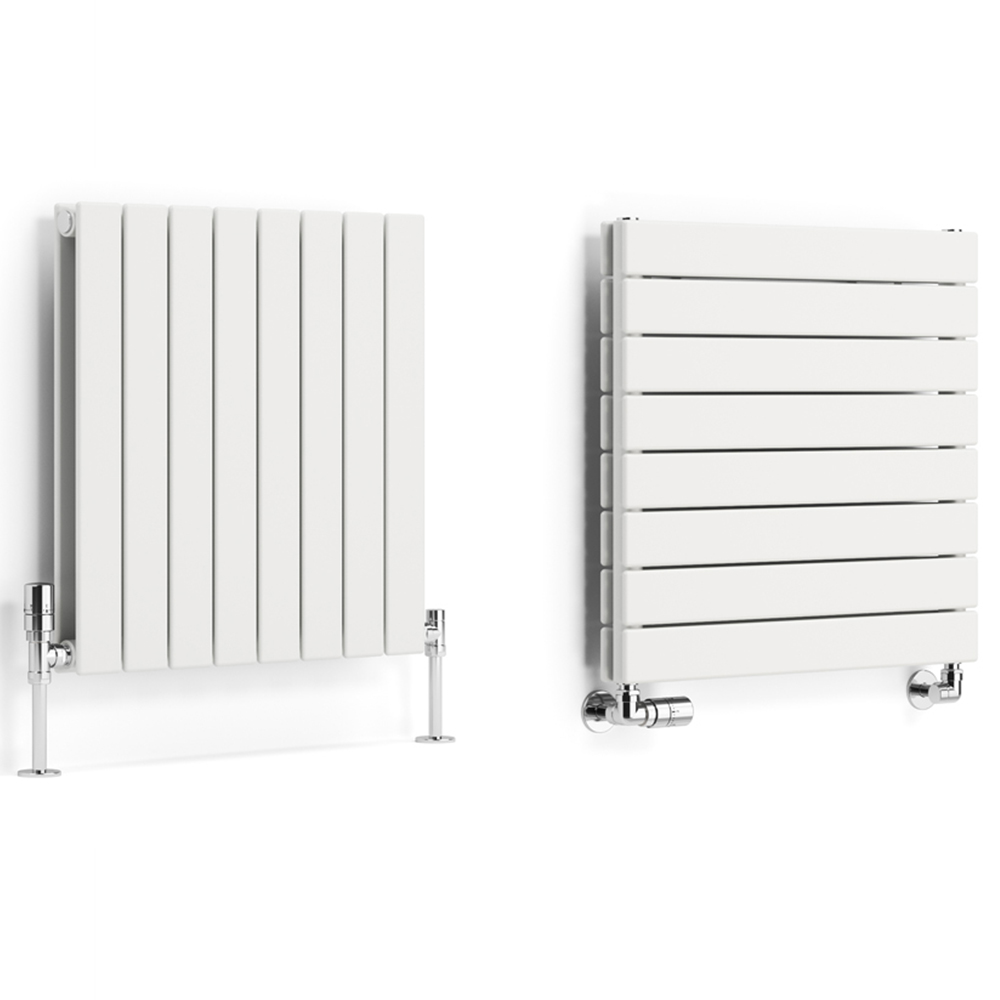

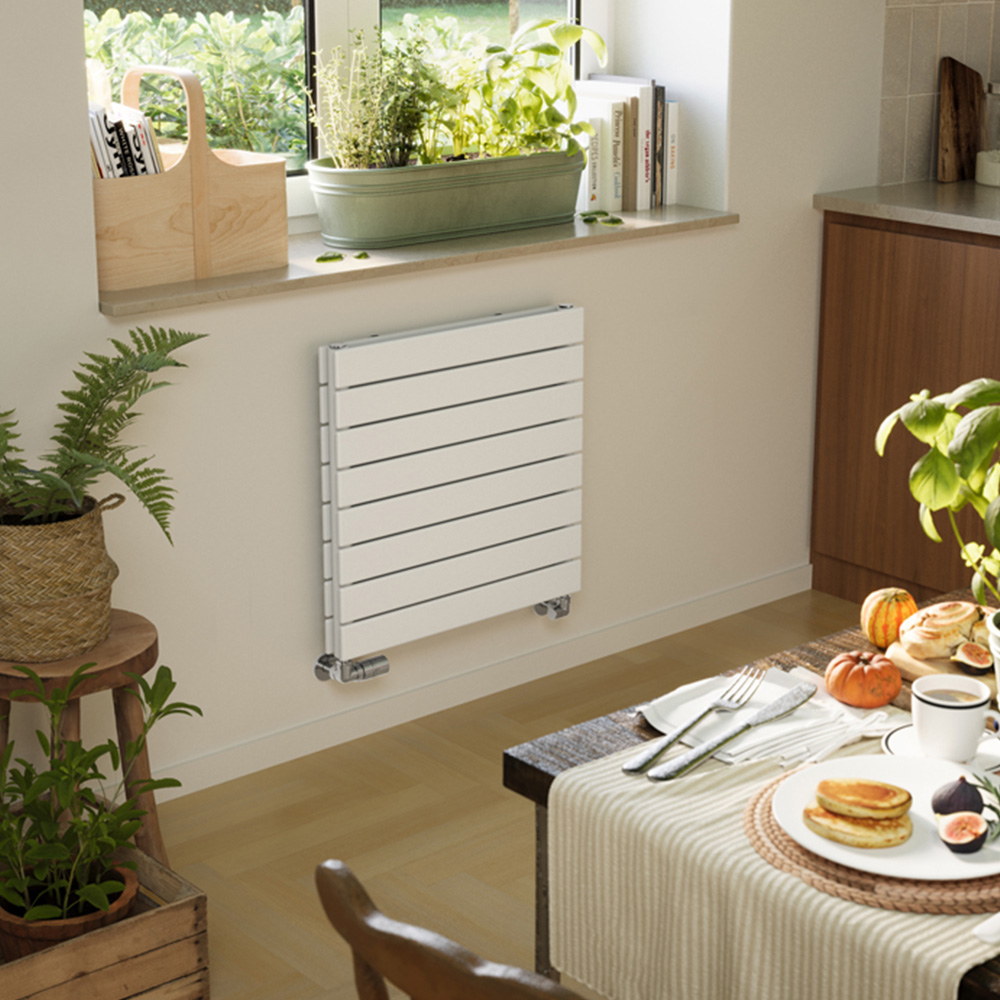

Finished in a smooth, silky white (RAL 9016), a 150x50mm colour chip is available should you wish to see the colour prior to purchase. The Forte range offers unparalleled flexibility, as it can be installed either vertically (with bars running up and down and valves connected on the sides) or horizontally (with bars running left to right and valves connected underneath). The same physical model can be installed in either orientation, adapting to your specific space requirements. Images demonstrate how the radiator appears in both orientations, showcasing the distinct design impact of each.

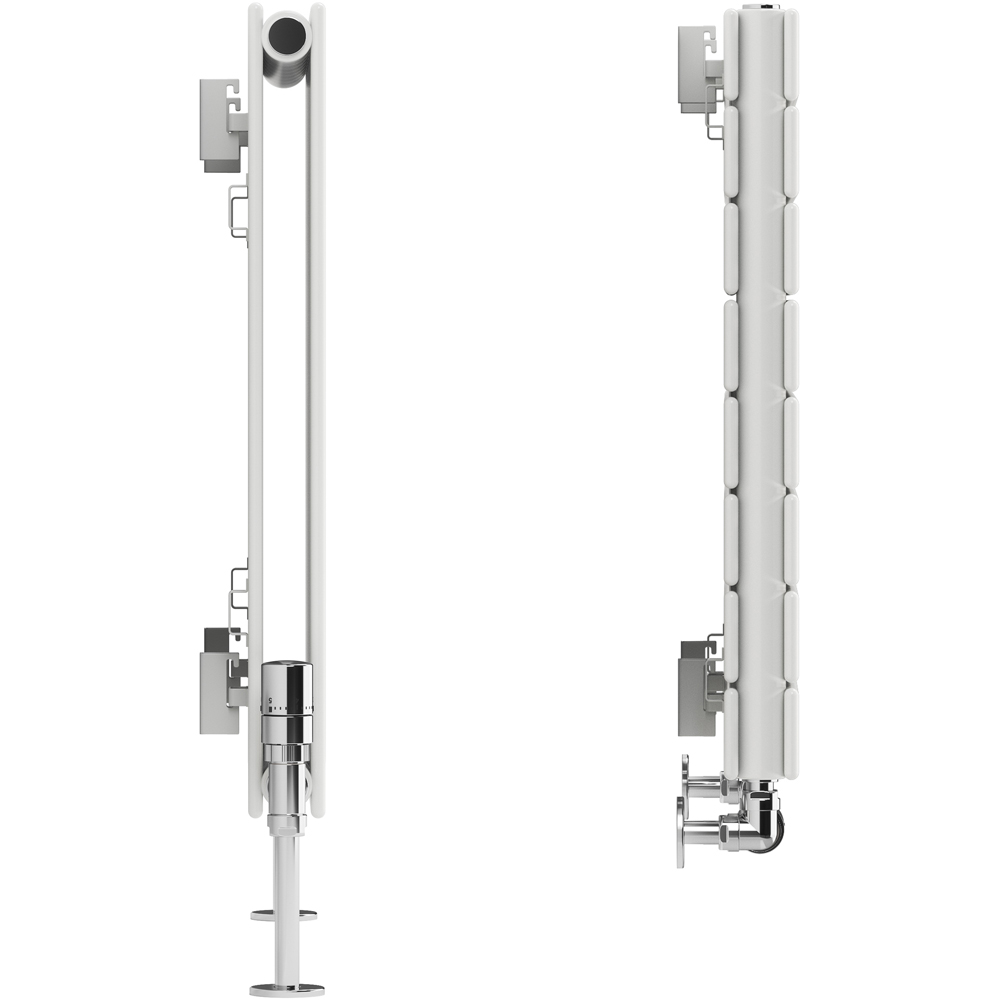

The Forte is supplied with a universal bracket for installation in either orientation, complete with full instructions. As you rotate the radiator either way up it changes the view you will have of the brackets from the side of the radiator. With the bars running vertically the brackets are on show, but with the bars running horizontally the brackets are fully concealed from view. Note that the bracket visibility changes depending on the orientation. An internal diverter (baffle) is pre-fitted to ensure even heat distribution across all bars when installed vertically. If installing horizontally, this diverter should be tapped out (instructions provided for the plumber).
-
Brand:
-
Terma
-
Type:
-
Radiators
-
Colour:
-
White
-
Pack Qty:
-
1
-
Size:
-
60 x 58.8 x 9.3cm
-
Customer Assembly Required:
-
No
-
Height:
-
60.00
-
Material:
-
Low Carbon Mild Steel
-
Width:
-
58.80
-
Depth:
-
9.30
-
Model No:
-
TG20F060058-K916LP
-
Product Code:
-
0768006
