- Built with single-layer flat steel profiles
- Ideal for spaces with limited projection
- Delivers a heat output of 1780 BTU
The Forte radiator range presents a sleek, flat-bar design, available in single or double panel options. Each 70mm bar is separated by a slim gap, creating a seamless aesthetic when mounted. The Forte single panel (V10) variant features a single layer of flat steel profiles on round rear collectors, projecting just 73mm from the wall (including fixings), making it ideal for compact spaces. A deeper, double panel (V20) model with a 93mm projection is also available.

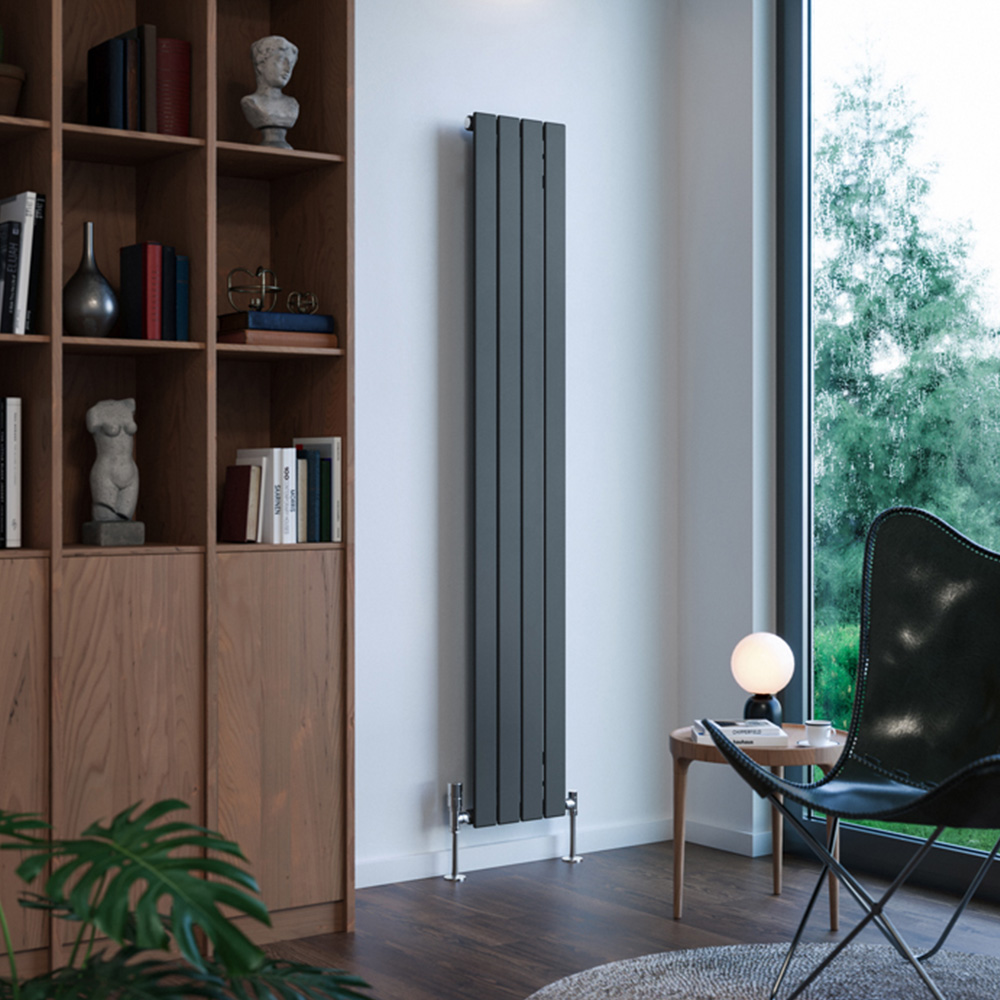

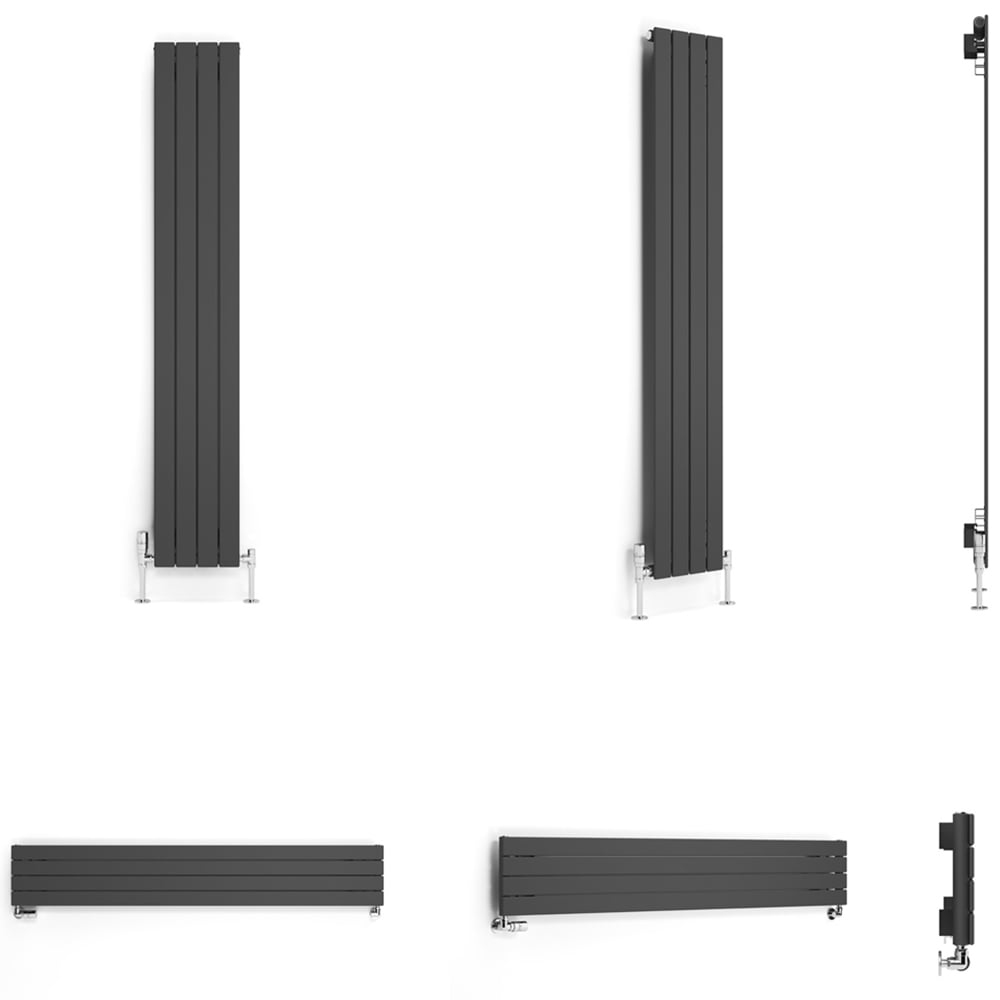

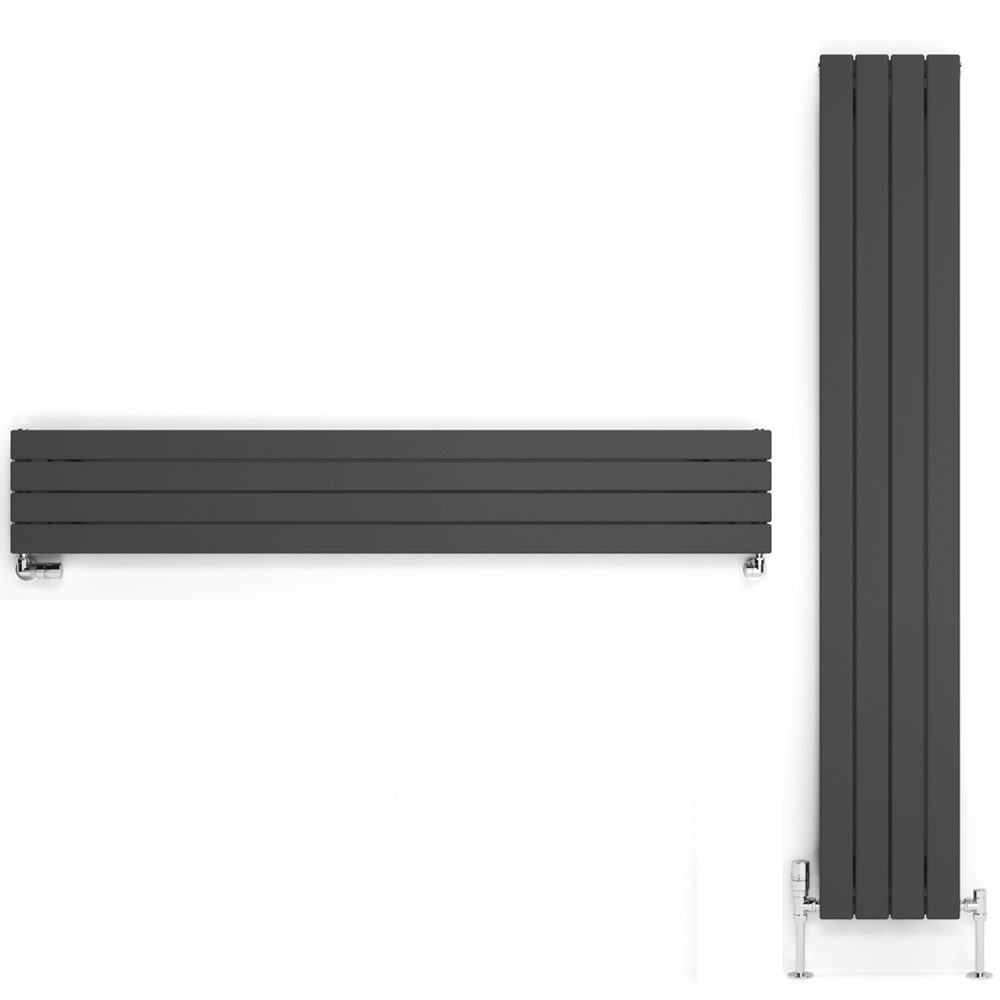

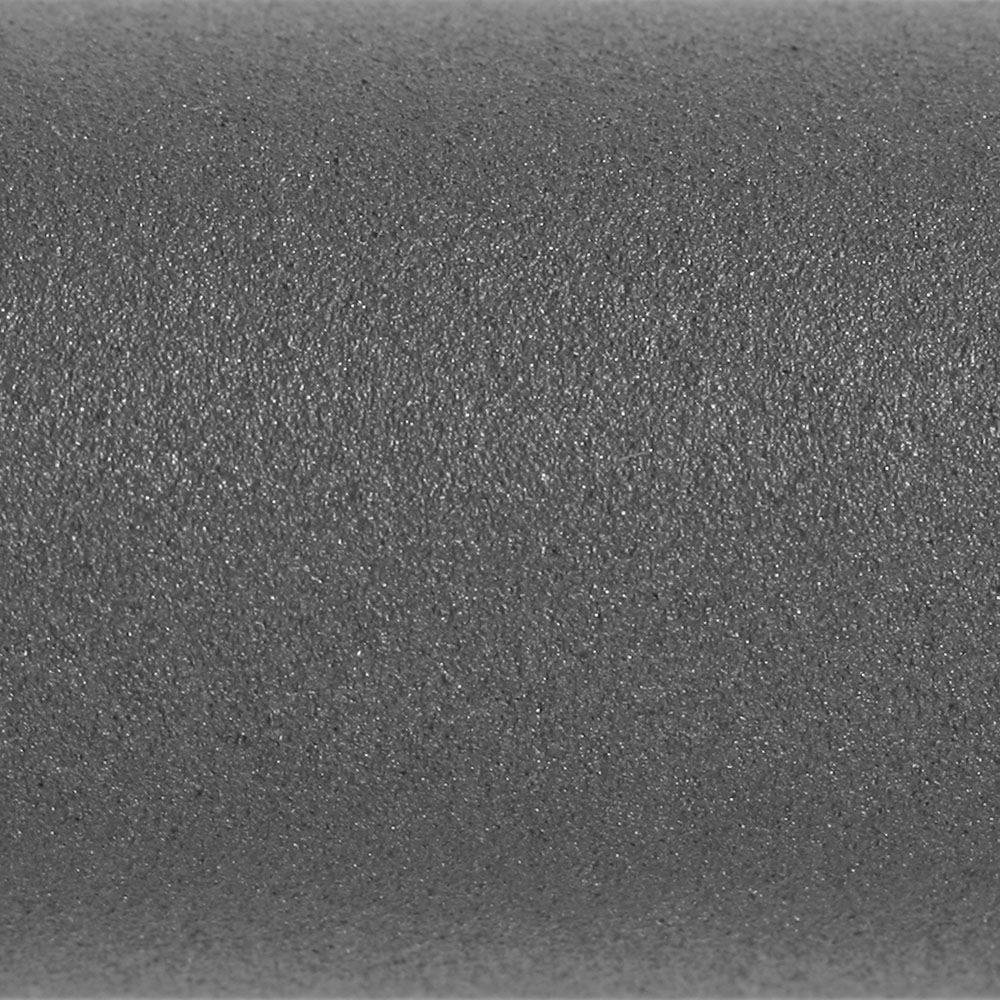

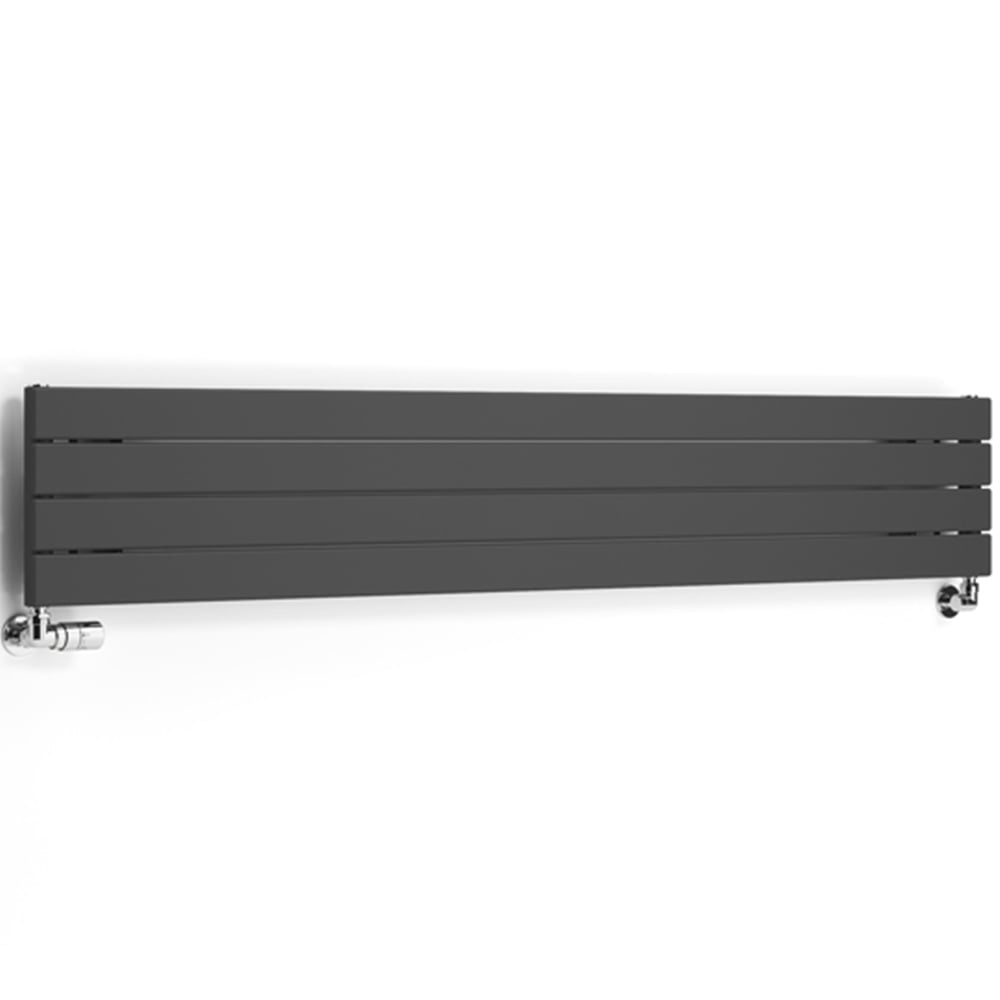

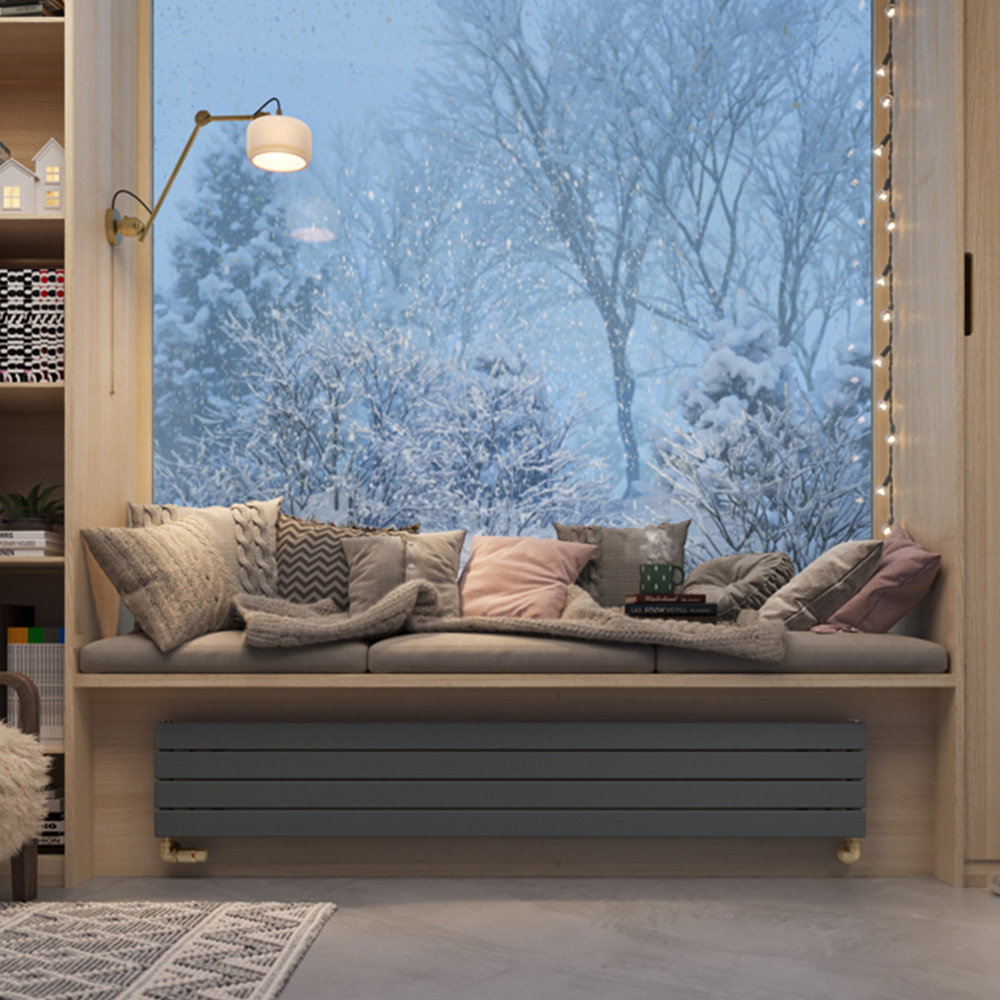

Finished in a metallic grey (Anthracite) with a matt, rough texture, a 150x50mm colour chip is available should you wish to see the colour prior to purchase. A unique design allows for vertical installation (bars running up and down, valves connected on the sides) or horizontal installation (bars running left to right, valves connected underneath). The same model can be mounted either way, offering flexibility to suit your space. Images demonstrate both orientations, highlighting the distinct look achieved by rotating the design.
The Forte is supplied with a universal bracket for either installation method, with full instructions included. Bracket visibility varies depending on orientation: vertical mounting exposes the brackets, while horizontal mounting conceals them. An internal diverter (baffle) is pre-fitted to ensure even heat distribution. This should be left in place for vertical installation, but removed for horizontal installation (instructions provided for the plumber).
-
Brand:
-
Terma
-
Type:
-
Radiators
-
Colour:
-
Grey
-
Pack Qty:
-
1
-
Size:
-
180 x 29.2 x 7.3cm
-
Customer Assembly Required:
-
No
-
Height:
-
180.00
-
Material:
-
Low Carbon Mild Steel
-
Width:
-
29.20
-
Depth:
-
7.30
-
Model No:
-
TG10F180029-KMGRLP
-
Product Code:
-
0768015
