- Constructed with double-layer flat steel profiles
- Ideal for spaces with limited projection
- Delivers a heat output of 2111 BTU

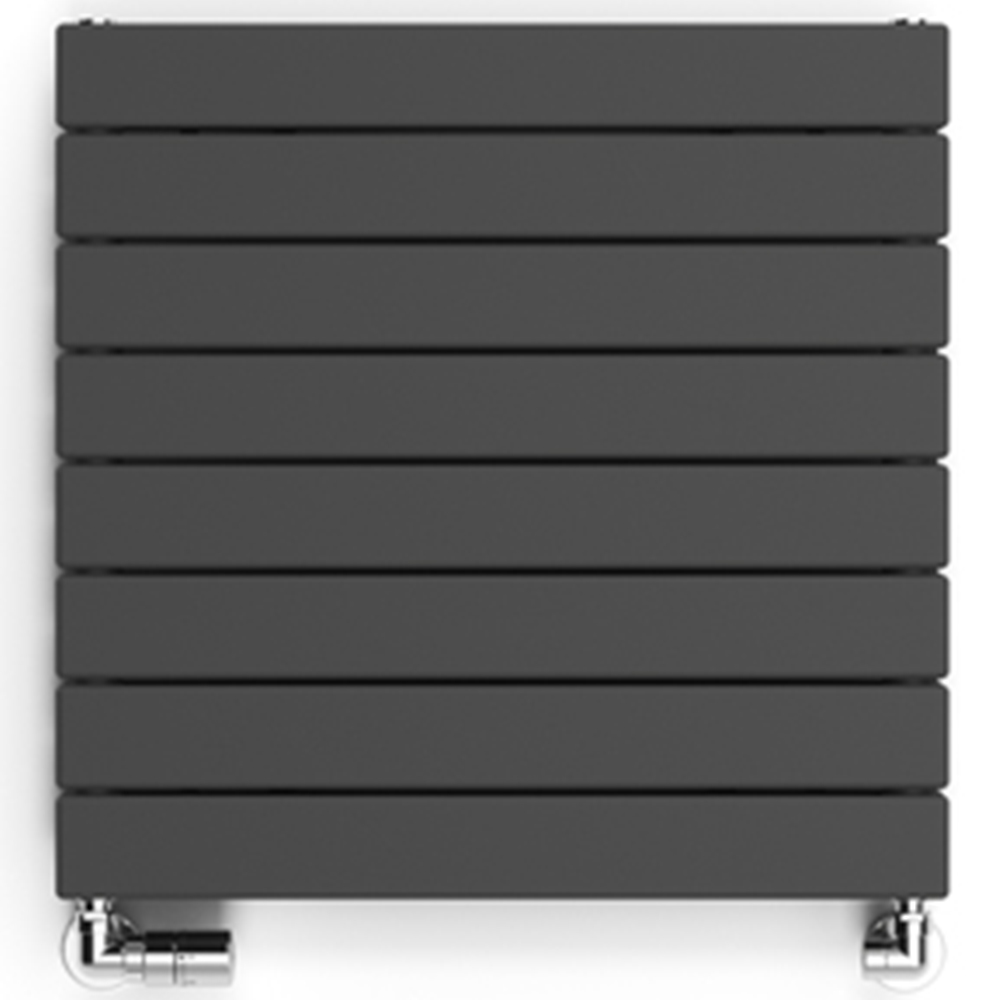

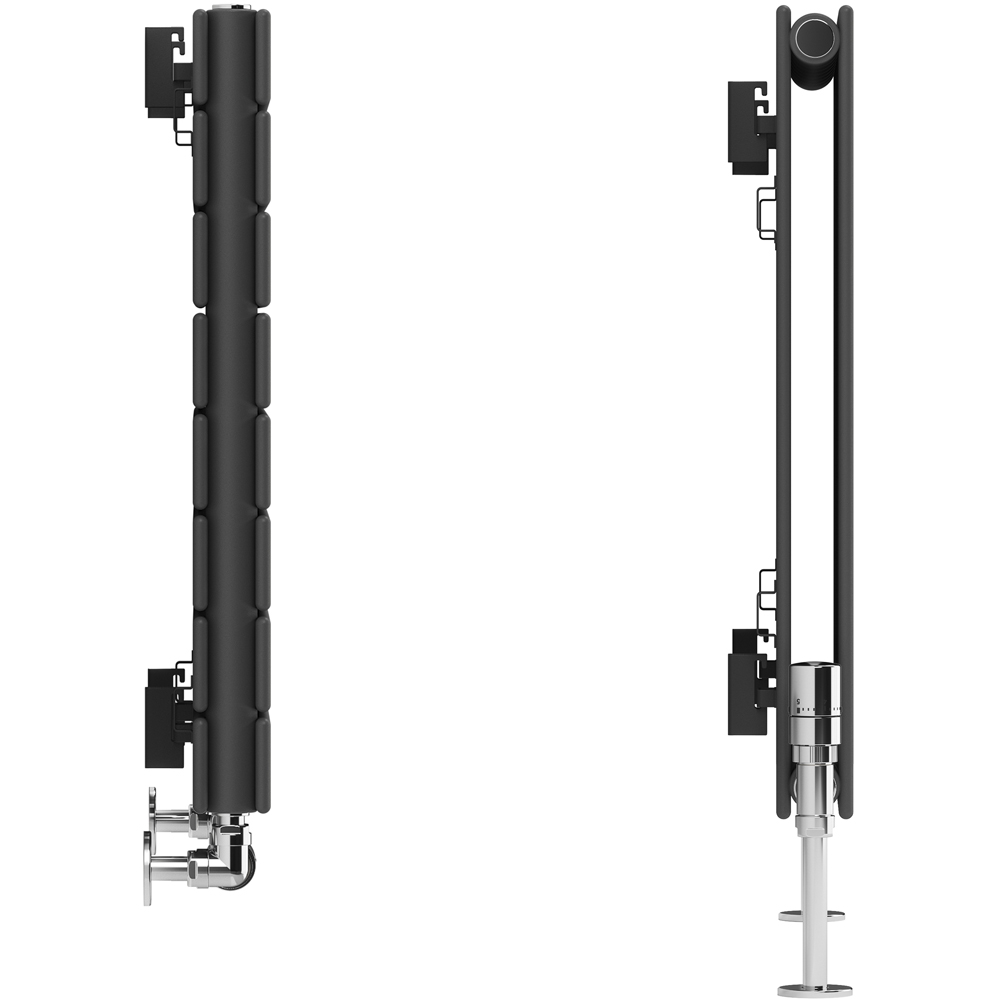

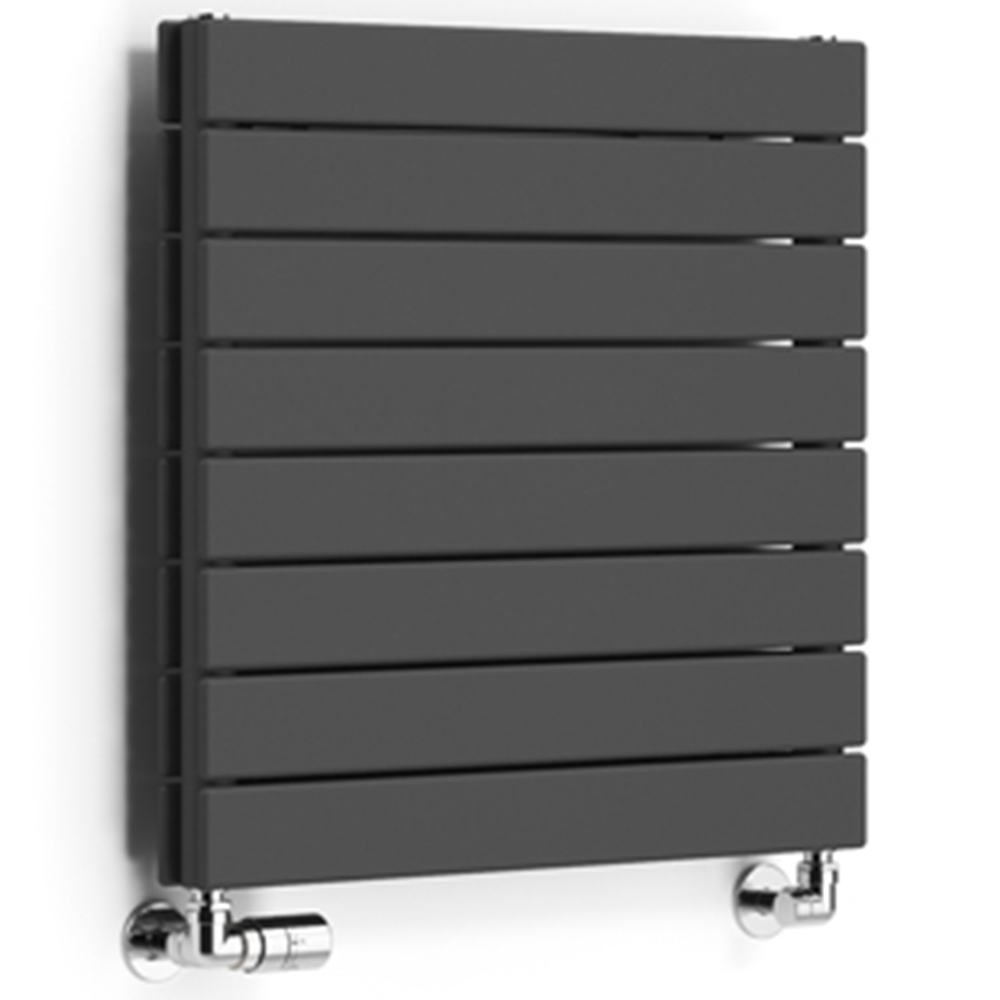

The Forte radiator range offers designer heating solutions with a sleek, flat bar aesthetic. Available in single or double panel options, each 70mm bar is subtly separated to create a seamless design. This particular model, the Forte double panel (V20), features a double layer of flat steel profiles mounted on round rear collectors, projecting just 93mm from the wall (including fixings), making it ideal for rooms where space is at a premium. (Note: a Forte single panel model (V10) is also available, with a projection of only 73mm).

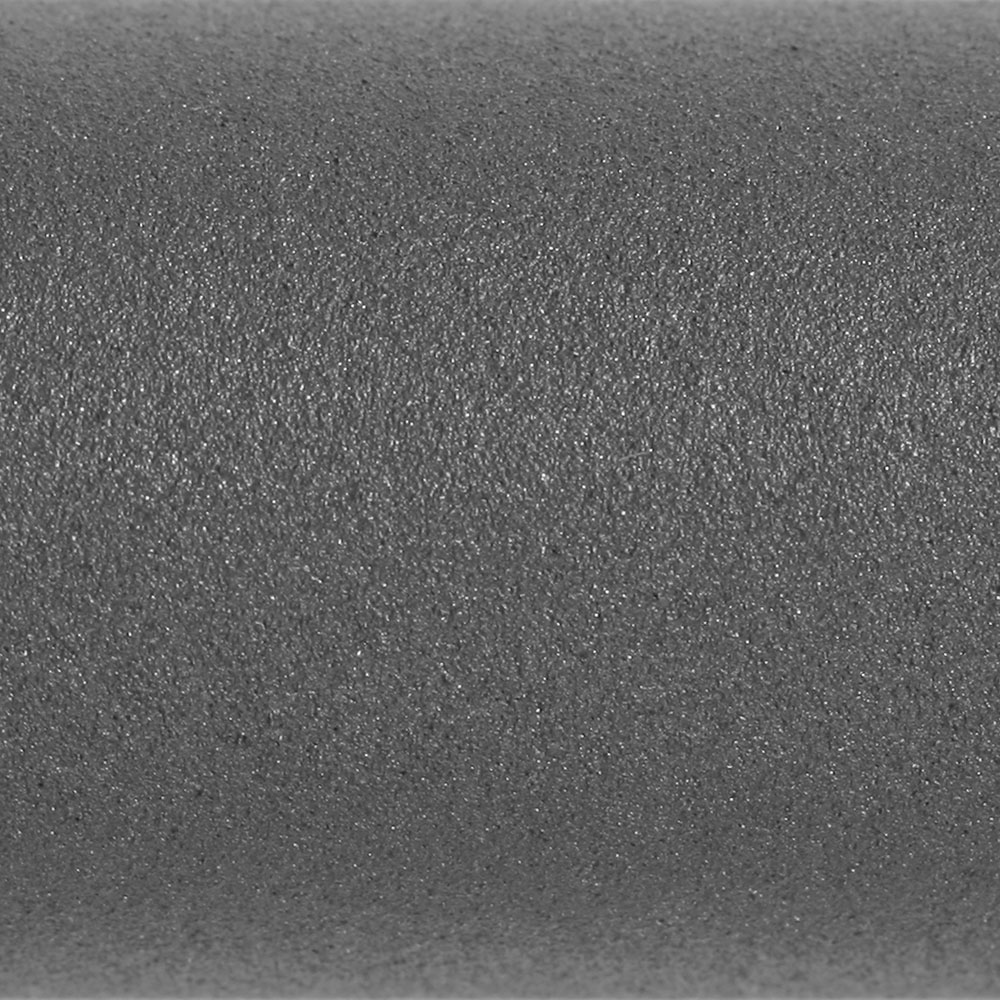

The metallic grey (Anthracite) finish has a textured, matt appearance. A 150x50mm colour chip is available should you wish to see the colour prior to purchase.

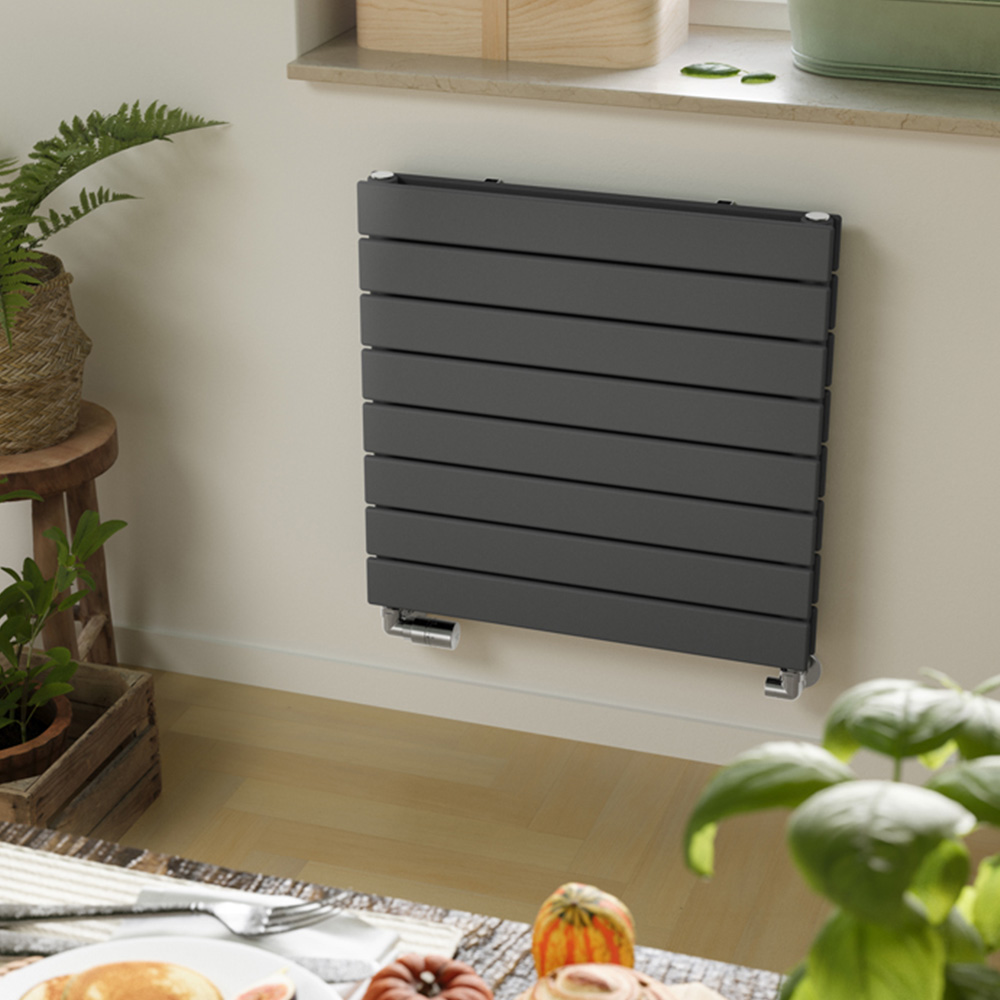

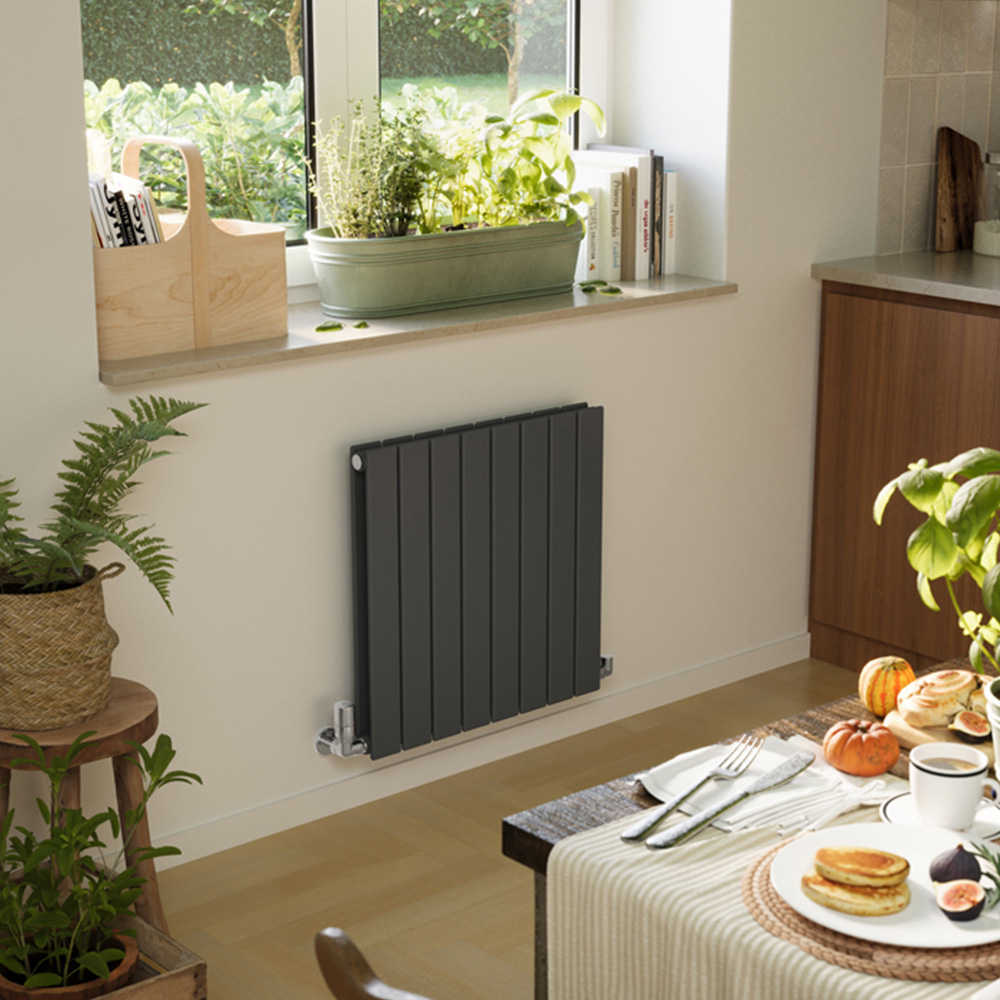

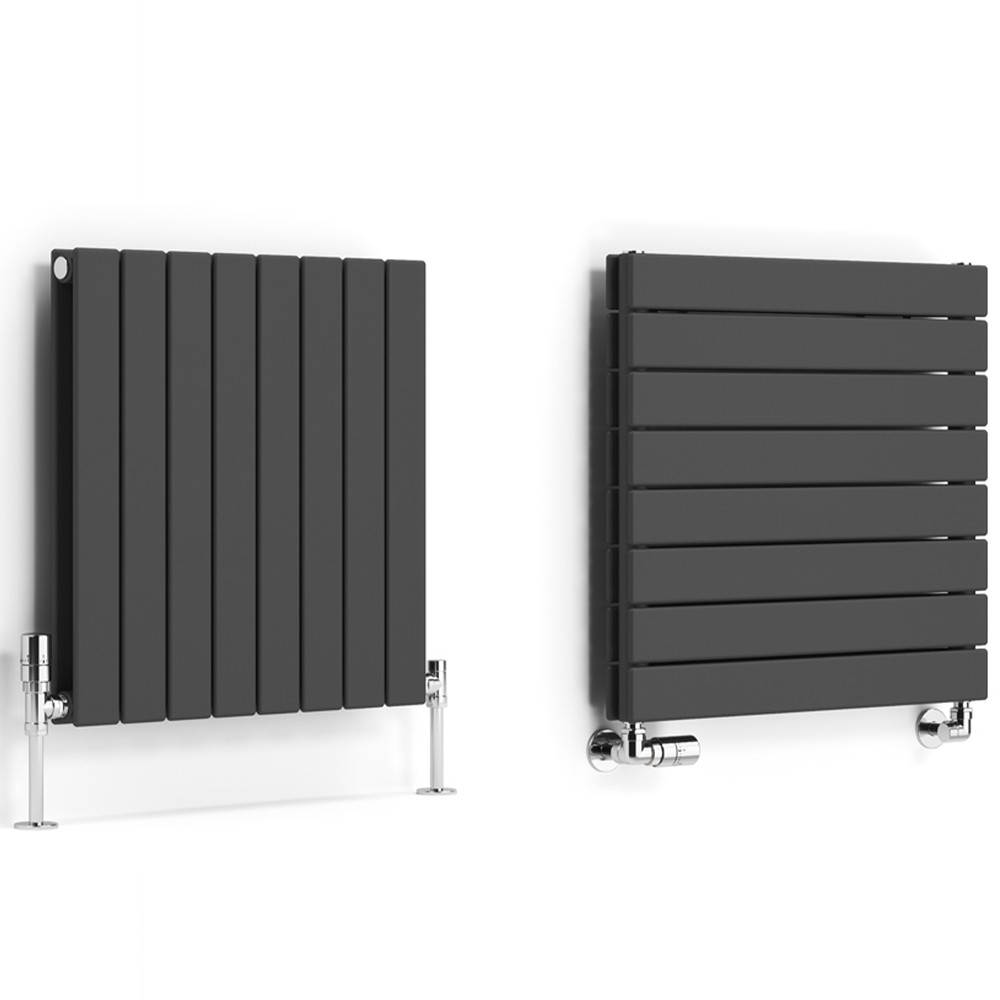

A unique feature of the Forte range is its versatile installation: mount it vertically with the bars running up and down (valves connected on the sides), or horizontally with the bars running left to right (valves connected on the undersides). The same model can be installed either way, providing maximum flexibility to suit your space requirements. Images demonstrate the different aesthetics achieved by rotating each model, showcasing both vertical and horizontal installations for every size.
Forte is supplied with a universal bracket for either orientation, accompanied by full instructions. Bracket visibility varies depending on the orientation: vertical installation exposes the brackets, while horizontal installation conceals them.
Forte comes pre-fitted with an internal diverter (baffle) to ensure even heat distribution across all bars when installed vertically. For horizontal installation, this diverter needs to be tapped out (instructions provided for the plumber).
-
Brand:
-
Terma
-
Type:
-
Radiators
-
Colour:
-
Grey
-
Pack Qty:
-
1
-
Size:
-
60 x 58.8 x 9.3cm
-
Customer Assembly Required:
-
No
-
Height:
-
60.00
-
Material:
-
Low Carbon Mild Steel
-
Width:
-
58.80
-
Depth:
-
9.30
-
Model No:
-
TG20F060058-KMGRLP
-
Product Code:
-
0768007
